What this page is. ReCopilot is published research by Guoqiang Chen, Huiqi Sun, et al. (QI-ANXIN Technology Research Institute) — it is not my work. The first half of this page is my study and summary of their system (the foundation I build on). The second half, My contribution, is an independent, lightweight reimplementation I wrote myself — a retrieval-augmented (RAG) baseline for binary function-name recovery that borrows ReCopilot's core idea (feeding an LLM static-analysis context) but uses no model training. Code: github.com/Emad-Mahmodi/binary-rag-copilot. All figures in the background section are reproduced from the ReCopilot paper and are credited as such.

Motivation

Binary analysis sits at the heart of cybersecurity work — from malware detection to vulnerability discovery — yet it remains one of the most labor-intensive tasks in the field. When source code is compiled and its debug symbols are stripped, all the meaningful context that makes code readable vanishes: function names become sub_1909, variables become a1 and v3, and data structures lose their identity. Decompilers like IDA Pro and Ghidra lift machine code back into C-like pseudo-code, but they cannot recover these lost symbols.

This is my day-to-day domain (automotive ECU reverse engineering), so I studied the current state of the art for applying LLMs to it — ReCopilot — in depth, and then built my own lightweight baseline to understand how much of the job is achievable without the heavy machinery ReCopilot uses.

LLM for Binary Analysis RAG (my baseline) Static-Analysis Context Binary Reverse Engineering

Part 1 — Background: How ReCopilot Works (Chen et al., 2025)

The following summarizes the published ReCopilot system. It is their contribution, not mine; I include it because my baseline builds on its central idea.

The Core Problem: Semantic Gap in Decompiled Code

When a binary is stripped, debug symbols are removed. What remains is decompiled pseudo-code full of placeholder names. A real AES encryption function that reads clearly in source as AES_CBC_encrypt_buffer — with named structs (AES_ctx) and typed fields (RoundKey, Iv) — becomes sub_1909 with arguments a1, a2, a3 after stripping and decompilation, leaving analysts to reconstruct intent from offsets and arithmetic alone.

Figure 1 (from the ReCopilot paper, Chen et al., 2025): The same AES CBC encryption function — decompiled pseudo-code (left) vs. original source (right). All symbolic information is erased after stripping.

ReCopilot targets three levels of representation: clean source code, decompiled pseudo-code with symbols, and the hard case — stripped pseudo-code with only generic placeholders and raw offsets.

Dataset Construction

A major part of the ReCopilot work is a large-scale dataset built from scratch, since no adequate public one existed. Three pipelines collect binary functions at scale: compile-from-scratch (open-source packages compiled with controlled flags, functions extracted via DWARF), off-the-shelf artifacts (release + debug + source packages from Ubuntu/Debian), and CompileAgent (an LLM-driven build agent for ad-hoc GitHub projects). In total, over 100 million binary functions from 11,000+ projects, then sanitized and MinHash-deduplicated.

Each pretraining sample pairs three views of the same function — stripped pseudo-code, symbolized pseudo-code, and source with a natural-language comment — with the segments randomly shuffled to force bidirectional learning. The final pretraining corpus is 36 billion tokens.

Pretraining Data Format and Inner-Shuffling

Figure 2 (from the ReCopilot paper): Each pretraining sample contains three representations of the same function; inner-shuffling randomizes segment order to enforce bidirectional learning.

For task fine-tuning, ReCopilot uses a generator–discriminator framework to synthesize Chain-of-Thought examples: a Generator writes reasoning without seeing ground truth; a Discriminator judges it for correctness and consistency. Passing examples become SFT data; failed-then-fixed ones become DPO chosen/rejected pairs. The final SFT set covers 14 binary-analysis tasks (name recovery, signature/variable/struct recovery, algorithm identification, summarization, decompilation improvement, and more).

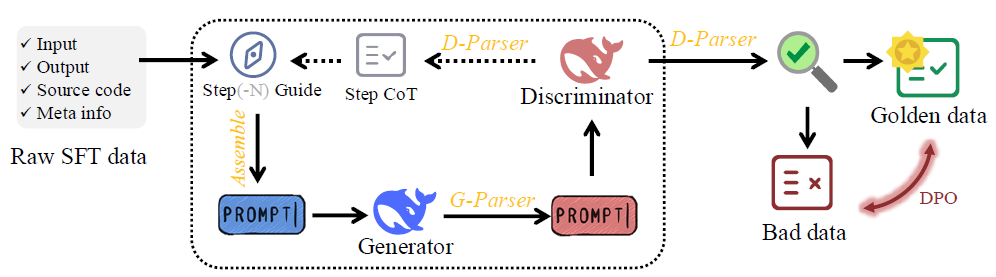

Figure 3 (from the ReCopilot paper): The generator–discriminator loop for automated CoT dataset construction; failed generations are recycled as DPO pairs.

Training Strategy

ReCopilot is trained in three stages on top of Qwen2.5-Coder-7B: Continued Pretraining (CPT) to inject binary-domain knowledge, Supervised Fine-Tuning (SFT) to follow structured instructions and emit JSON with CoT reasoning, and Direct Preference Optimization (DPO) to improve format compliance and reasoning coherence.

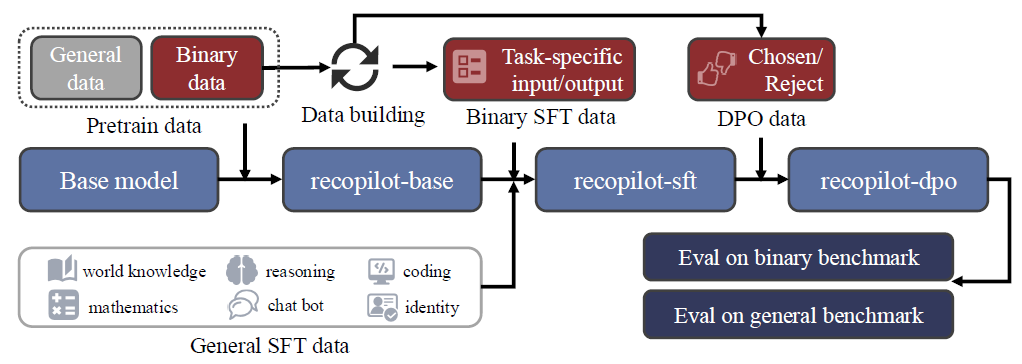

Figure 4 (from the ReCopilot paper): The three-stage training pipeline — CPT → SFT → DPO.

Context Enhancement

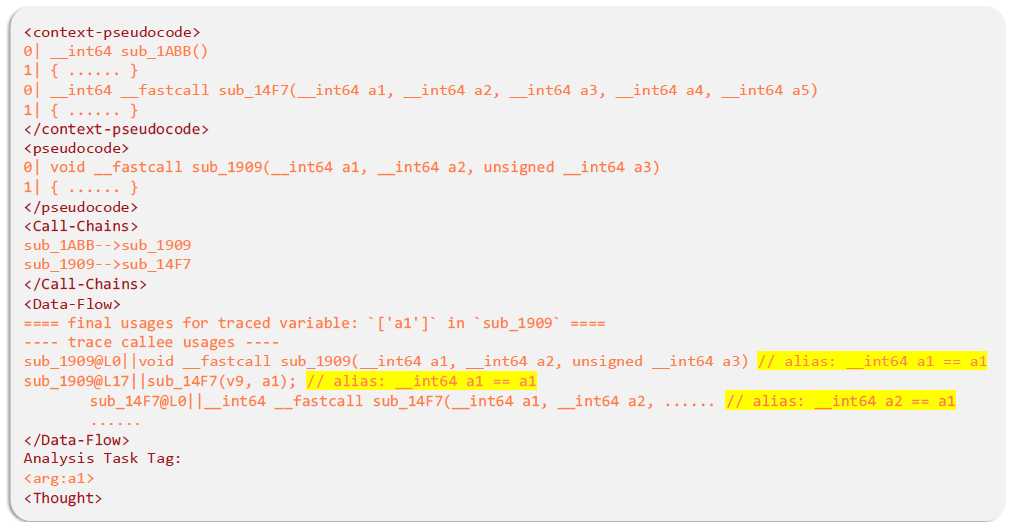

ReCopilot’s most transferable idea — and the one my baseline borrows — is that a single function rarely tells the whole story, so it augments the model with static-analysis context at inference time: a bidirectional call-graph traversal selects informative caller/callee functions (ranked by an informativeness score over names, string density, and callee names), and a custom data-flow engine injects alias annotations directly into the prompt.

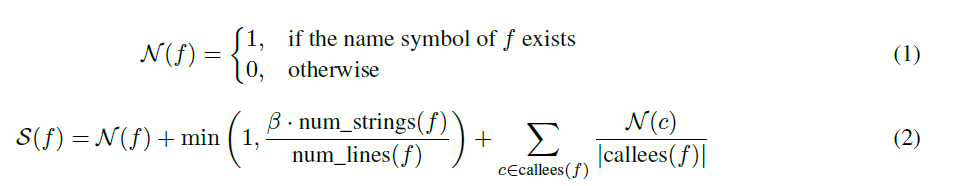

Figure 5 (from the ReCopilot paper): The informativeness score S(f) ranking context functions by name, string-literal density, and named-callee ratio.

ReCopilot’s Reported Results

On a from-scratch, full-binary benchmark (six tasks; leakage-free private test data), ReCopilot reportedly outperforms baseline tools by ~13% on average, and its 7B expert model reaches performance comparable to far larger general models (e.g. DeepSeek-V3, 671B) — supporting the thesis that domain-specific training beats raw scale for this task. Ablations credit CPT, DPO (format compliance), and data-flow context (struct tasks) as the main contributors.

Part 2 — My Contribution: A Lightweight RAG Baseline

Everything below is my own work: github.com/Emad-Mahmodi/binary-rag-copilot.

ReCopilot answers “how good can an LLM get at binary analysis if you train one properly?” I wanted the complementary question:

How much of function-name recovery is achievable with the context idea alone — no training, just retrieval + prompting of an off-the-shelf model?

That question needs a baseline, so I built one.

Method

 symbol-bearing binary
        │  objdump / llvm-objdump  (tool-independent PLT→GOT→symbol resolution)
        ▼
 per-function context ── callees ── callers ── disassembly     ← RETRIEVAL
        ▼
 hide the real name → build a context-augmented prompt          ← AUGMENT
        ▼
 LLM backend proposes a name  (mock | OpenAI-compatible | Ollama)   ← GENERATE
        ▼
 score vs. the real name — exact / token-F1 / semantic-hit      ← EVALUATE

Ground truth is free: a symbol-bearing binary already knows each function’s real name. I hide it, ask the pipeline to recover it from context, and score the guess. The call-context extraction reuses the call-graph tooling from my GPU graph-analytics project, and the disassembly parser resolves PLT calls to real symbols across both GNU objdump and LLVM llvm-objdump.

My RAG pipeline for function-name recovery

Figure 6 — my own work: The four-stage pipeline in binary-rag-copilot. No model training: retrieve call context → augment a prompt → let a pluggable LLM backend propose a name → score against the real symbol. Every stage maps to a module in the repo (src/rag/, src/llm/, src/eval/).

How it differs from ReCopilot

	ReCopilot (Chen et al.)	My baseline
Core idea	LLM + static-analysis context	same idea
How the model is built	CPT + SFT + DPO on 36B tokens	no training — retrieval + prompting
Compute to reproduce	multi-GPU, weeks, private data	a laptop; default backend needs no GPU
Tasks	14	function-name recovery (extensible)
Runs offline, no API key	—	yes (mock backend)
Ceiling on quality	high (purpose-built model)	bounded by the general LLM plugged in

Honest positioning: ReCopilot is the stronger system; mine is the cheap, fully-reproducible baseline that isolates how far context + prompting alone can go. Its pipeline can even serve ReCopilot’s own base model (Qwen2.5-Coder via Ollama) to measure exactly that.

Results (proof-of-concept)

Five methods scored on the same functions of a small symbol-bearing demo binary. The default backend is a transparent call-pattern heuristic — not an LLM — serving as an honest lower bound any real model should beat:

Method	token-F1	semantic-hit
majority-callee	0.00	0.00
heuristic (calls)	0.36	0.60
nearest-neighbor (RAG retrieval)	0.00	0.00
llm (mock lower-bound)	0.36	0.60
llm (Qwen2.5-Coder, Ollama)	plug in to fill	plug in to fill

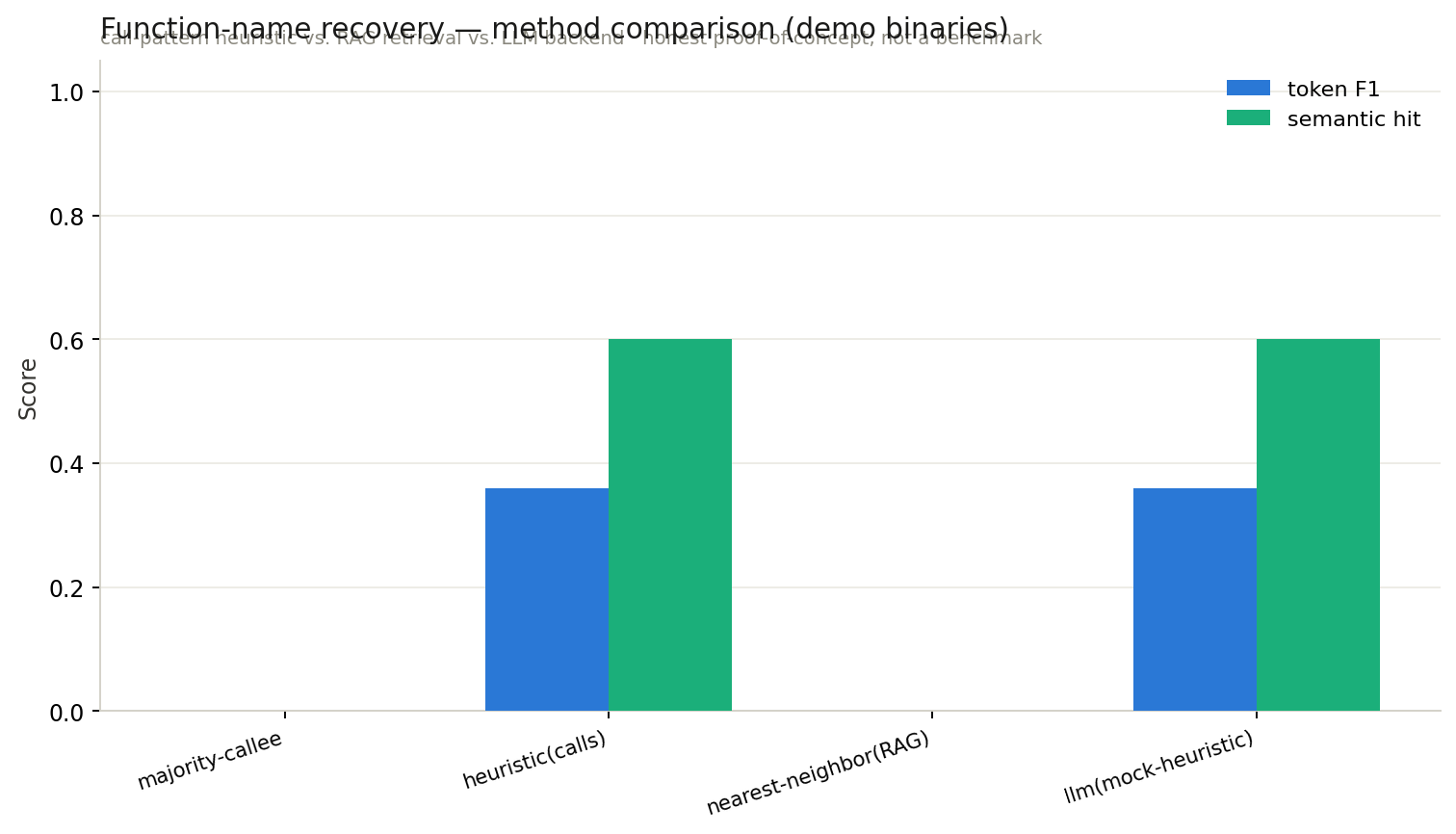

Figure 7 — my own work: Head-to-head of the naming methods, produced by experiments/compare_methods.py in binary-rag-copilot. The call-pattern heuristic recovers 60% of names semantically; the retrieval baseline collapses under domain mismatch — motivating the LLM row.

Example recoveries from call context alone: read_whole_file → read_file, print_banner → print_message, compare_names → compare_strings. Run it yourself: python experiments/run_name_recovery.py --binary examples/demo — the full command set is in the repo README.

Deliberately honest caveat. These are tiny demo binaries (≈5 functions), so the numbers illustrate the pipeline and the differences between methods — they are not a benchmark verdict, and they are not comparable to ReCopilot's large-scale evaluation. The interesting finding is qualitative: the retrieval baseline fails when the corpus doesn't cover the test binary's call patterns, which is exactly why a model that reads the disassembly is needed — motivating the LLM row.

Work in Progress

Three extensions are actively underway to turn this proof-of-concept into a meaningful study:

🚧 In Progress

Plug in a real LLM. Wiring Qwen2.5-Coder (ReCopilot’s own base family) through Ollama on my local NVIDIA T600 GPU, to fill the LLM row of the comparison table with a genuine number — so the claim becomes concrete: “context + prompting alone reaches X% semantic accuracy, versus the 60% call-pattern lower bound.”
Add a second task. Extending the pipeline from function-name recovery to a second ReCopilot task — variable-type inference or one-line function summarization — moving from one task to two on the same context-retrieval backbone.
Evaluate on a larger corpus. Running the study over many symbol-bearing binaries instead of the demo pair, so the metrics become statistically meaningful rather than illustrative. The harness already accepts multiple corpus/test binaries (--corpus a b c --test d).

Progress is tracked in the repository roadmap.

Attribution & Reference

The system studied in Part 1 is not my work. Full credit to its authors:

ReCopilot: Reverse Engineering Copilot in Binary Analysis
Guoqiang Chen, Huiqi Sun, Daguang Liu, Zhiqi Wang, Qiang Wang, Bin Yin, Lu Liu, Lingyun Ying
QI-ANXIN Technology Research Institute, Beijing, China
arXiv:2505.16366 — May 2025 · project code

My own independent baseline (Part 2): github.com/Emad-Mahmodi/binary-rag-copilot. All figures above are reproduced from the ReCopilot paper for the purpose of study and are credited accordingly.
